TYN33 series hybrid solar inverter
See more pictures
Description:

TYN33 Series 3 phase off grid solar inverter

TYN33 Series 3 phase off grid solar inverter consist of MPPT solar Controller (high-power MPPT Controller external installation), charger, rectifier, inverter, static switch, main control circuit and display alarm circuit and so on. Widely applicant in the off grid solar pv system, mean to take use of the solar energy.

- +
0
- +
0
- +
0

Contact Now Download As PDF
Product Detail
Feedback Now



TYN33 Series 3 phase off grid solar inverter

TYN33 Series 3 phase off grid solar inverter consist of MPPT solar Controller (high-power MPPT Controller external installation), charger, rectifier, inverter, static switch, main control circuit and display alarm circuit and so on. Widely applicant in the off grid solar pv system, mean to take use of the solar energy.

The advantage of TYN33 series 3 phase off grid solar inverter
- Pure sine wave output
- Built-in MPPT solar controller
- AC charging mode and solar charging mode, solar chargingpriority.
- two work mode: Solar-Grid-Battery, Solar –battery-Grid, Can choose it by LCD screen
- High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
- Intelligent detecting function.
- Excellent load feature : 0-100% while no need to change to bypass, which make sure the output reliable.
- RS232 and RS485 standard collocation, optional SNMP and dry contact.
- Many protection :Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
- Selectable battery inspection module

Model.
Speicifications
TYN33- 10K TYN33- 20K TYN33- 30K TYN33- 40K TYN33- 50K TYN33- 60K TYN33- 80K TYN33-100K TYN33-120K TYN33-160K TYN33-200K TYN33-300K TYN33- 400K
Nominal capacity (KVA) 10 20 30 40 50 60 80 100 120 160 200 300 400
Grid Max input current 21 41 61 81 101 121 162 202 242 323 404 606 808
type 3 phase +N+G
Line-Neutral voltage 220/230VAC±25%
line-line voltage 380/400VAC±25%
Input frequency 50/60Hz±5%
Charge voltage 432V±1%
Charge current <20%*Inverter capacity
PV PV input Open circuit voltage: 560VDC~800VDC
MPPT controller output voltage 438V
Maximum output current (A) 50 100 150 200 300 500 600 800 1000
Number of PV Input 1 2 3 4 6 10 12 16 20
Controller installation mode Built-in controller External controller
Battery type maintenance free lead-acid battery (other type battery need customize)
Battery voltage 384V (2V battery 192pcs in serial or 12V battery 32pcs in serial)
Battery capacity According to backup time
Battery low voltage protection >336V
inverter inverter output waveform Pure sine wave, THD<3%( linear load)
Line-Neutral voltage 220/230VAC±2%
line-line voltage 380/400VAC±2%
Input frequency 50/60Hz ±0.5%
Dynamic feature inverter output transient dynamic range less than±5%, recovery time <20mS
Crest factor 3:1
Overload protection (inverter output) overload 100% delay 10mins protect, overload 110% delay 1mins protect,overload 125% immediate protect
inverter effency >88% (100% load) >90% (100% load)
System parameter Transfer time <0.5ms (inverter--bypass)
Rated power Nominal capacity*0.8 (KW)
protection Output shortcircuit,overload,overvoltage,undervoltage, over temperature, etc protection, have audible and visual alarm
display LCD display input and output voltage, output current, the inverter voltage, frequency, output current, battery voltage, PV voltage, PV charging current, temperature mode, flowcharts, current work status, event record and system information
Operating environment Temperature 0-40C
Relative humidity 30%一95%
Operation altitude (max) <1000 meters (per increase 100 meters power decrease 1%, at most 4000 meters)
computer communicate interface RS232/RS485
Cooling method force-air cooling
Size WxDxH (unit : mm) 600x620x1250 700x620x1530 980* 800* 1800 1380*950*1800 2000* 1200* 1900
Weight (kg) 236 265 342 407 506 800 950 980 1440 1760 2800 3600

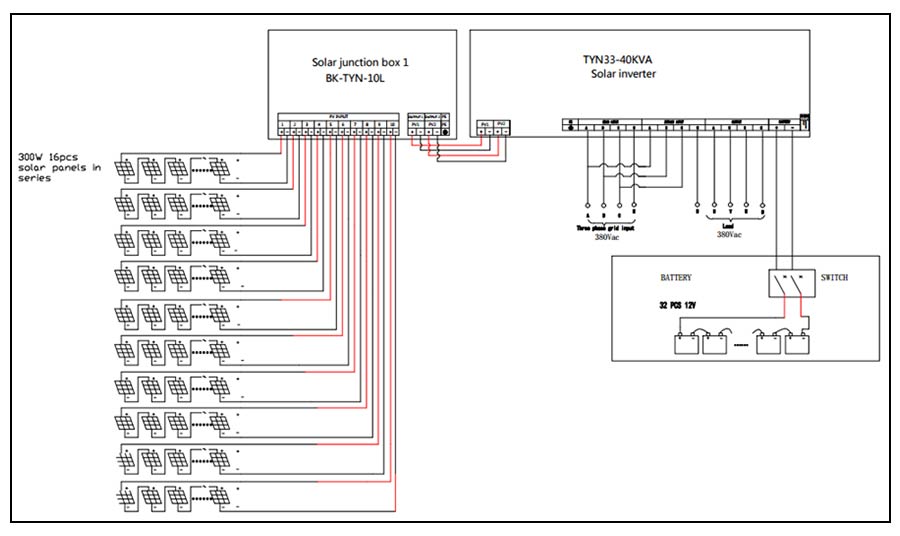

The wire collecting for TYN33-40KVA

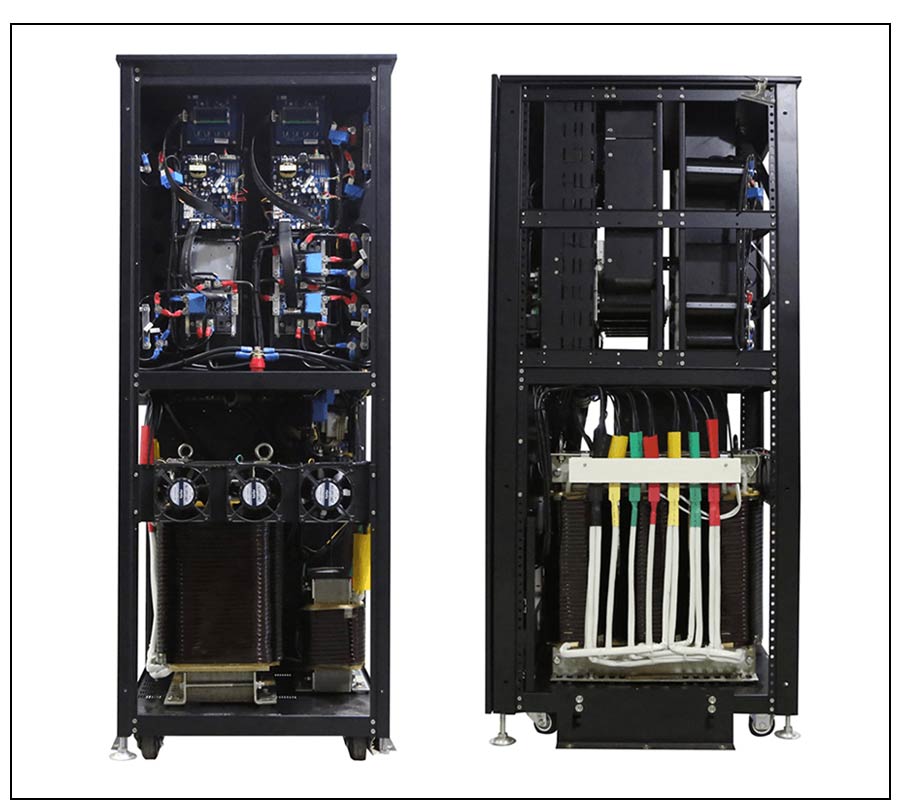

The internal structure of products

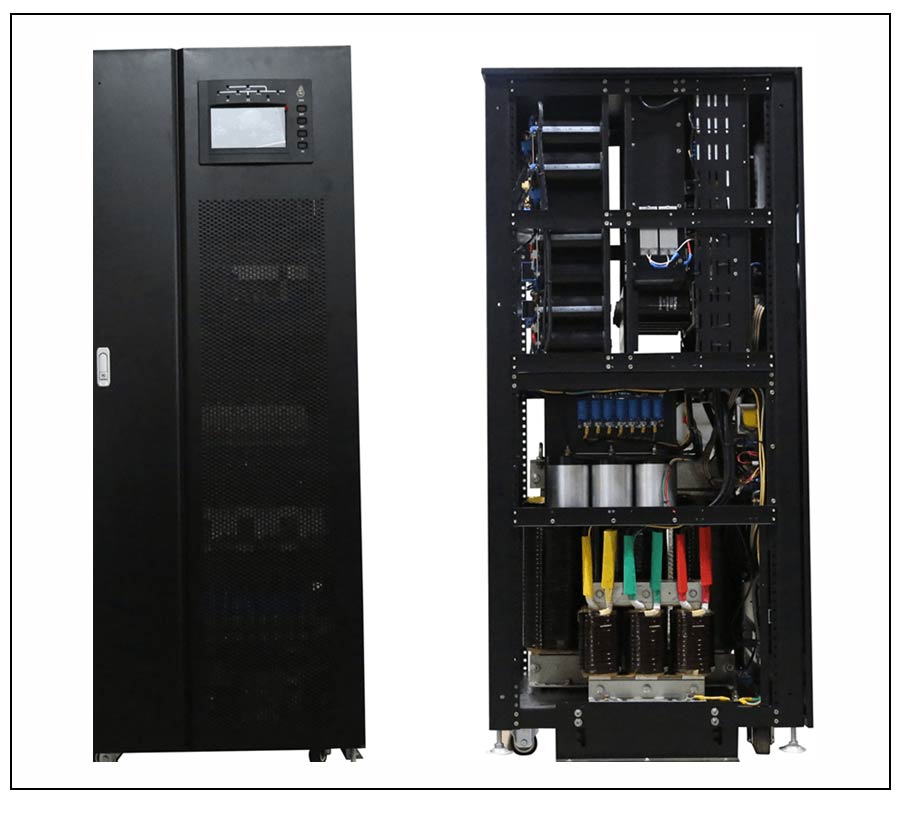

The production and packaging of TYN33 off grid solar inverter.
