MP1100 Series 1/1 online UPS 1kVA-30kVA

uninterruptible power supply backup power supply for home

See more pictures

Description:

MP1100 Series 1/1 online UPS 1kVA-30kVA is true online double conversion one phase in one phase out low frequency UPS. This series UPS adopts high-speed microprocessor (MCU), Programmable logic device (CPLD) program which are controlled by software, the sixth generation low-exhaust and big-power IGBT and static switch as power components. Capacity range from 1kva to 30kva, input and output voltage can be customer designed suit for different country’s utility.

MP1100 Series 1/1 online UPS 1kVA-30kVA suit for home equipment and small factory with liner loads and non liner loads like printer, motors, manufacturing machine, etc, it is widely used in telecom, bank, security, transporting, utility, manufacture, industry, commerce, government, medical equipment etc.

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

Send Email To Us Contact Now Download As PDF

Product Detail

Feedback Now

1.LED+LCD touch screen, all the data can be seen from the panel.
2.Low frequency true onlinedouble-conversion technology
3.Wide input voltage range220Vac, 230Vac, 240Vac( option 110Vac,120Vac, )
4.Advanced & Intelligent battery management, extend the battery life
5.Intelligent inspection system
6.High precision SMD technique, improve the circuit reliability and running precision
7.IGBT PWM inverter technology, efficiency is higher to 92%
8.Static bypass operation
9.Manual bypass operation
10.256 real time event log with detailed parameters
11.Standard RS232 & RS485, optional dry contacts or SNMP card for remote control.
12.Excellent load characters, Fulfill saltus from 0-100% without switching to bypass, safeguard stable output
13.Many protection: Input & output voltage, battery charge & discharge, temperature, short Circuit and overload
14.UPS, ECO, or Inverter Work Mode
15.Auto restart function
16.Perfect generator compatibility
17.Optional EPO function
18.Optional battery detecting module

Model

MP1101K

MP1102K

MP1103K

MP1104K

MP1106K

MP1108K

MP1110K

MP1115K

MP1120K

Nominal Capacity (KVA)

1KVA

2KVA

3KVA

4KVA

6KVA

8KVA

10KVA

15KVA

20KVA

Working Mode

Double Conversion true Online

Phase

Single phase L+N+G

Input Power factor

>0.90 (Plus Filter)

Rectifier

Input voltage

220Vac, 230Vac, 240Vac( option 110Vac,120Vac, )

Range

±25%

Input frequency

50Hz±10%, 60Hz±10%;

Input THD

<2%

Soft startup

0～100% 5sec

Charge

Charge mode

constant current to constant voltage, with temp compensation, with Auto change

Float voltage

55VDC

220VDC

Boost Voltage

56.8VDC

227VDC

Temp. compensation

-3mV/ 1 pcs

Charge current

6Amp ( option 20Amp)

Battery

Battery type

maintenance-free lead acid battery

Battery capacity

7～999AH settable (according to the capacity)

Battery number

4pcs 12V for 48VDC

16pcs 12V for 192VDC

Inverter

Phase

1 phase

Output Power Factor

0.8

Output Voltage

220Vac; 230Vac; 240Vac ( option 110Vac,120Vac, )

Output voltage distortion

±1 %( Stable load); ±5%( fluctuant load)

Freq distortion

50Hz 60Hz<±0.5%

crest factor

>3:1

Output THD

Sine wave ,linear load<3%;non-linear load<5%

Dynamic characteristic

Instant voltage<±5%(from 0 to100% ), Instant recover time<10MP11

Imbalance load voltage

Output Voltage <±5%

Overload protection

115% normal Work, 125% 10min, 150% 1min, 200% 1S

Efficiency

>92%(full load)

Bypass

phase

Single phase+N

Voltage

220Vac; 230Vac; 240Vac ( option 110Vac,120Vac, )

Transfer time

<1MP11( static switch with 0 S )

Protection

Input protection

Input over/low voltage ;over frequency

Output protection

Over current short circuit ; factor low

Battery protection

Over charge ; over-discharge

Temp protection

Environment over temp protection, inverter over temp protection

Hardware failure

Assistant power abnormal, breaker cut off, breaker overload, power components over current/over voltage etc protection

System Parameters

Cooling

COMPULSIVE VENTILATION(with temperature control)

Environment

Temp: 0～40℃, relative humidity 30%～90 %, ( a 1% decrease against 100 meters’ rise. Altitude 4000m MAX)

communication

RS232/ RS485; (optional SNMP card)

Redundancy function

In series or N+1 parallel

Anti-surge capacity

10/700μS, 5KV , 8/20μS, 20KA

Safety rate

IP21

Safety Performance

Vin-n Vout-n 3000Vac, creepage<3.5mA isolation resistance >3M(500VDC)

Noise (dB)

45～60

Mechanical Size (W×D×H)mm

210*520*530

220*520*640

220*520*760

450*600*1200

Packing Size (W×D×H)mm

286*585*740

286*585*840

286*585*960

520*670*1430

Net Weight(Kg)

186

201

Gross Weight(kg)

107

201

222

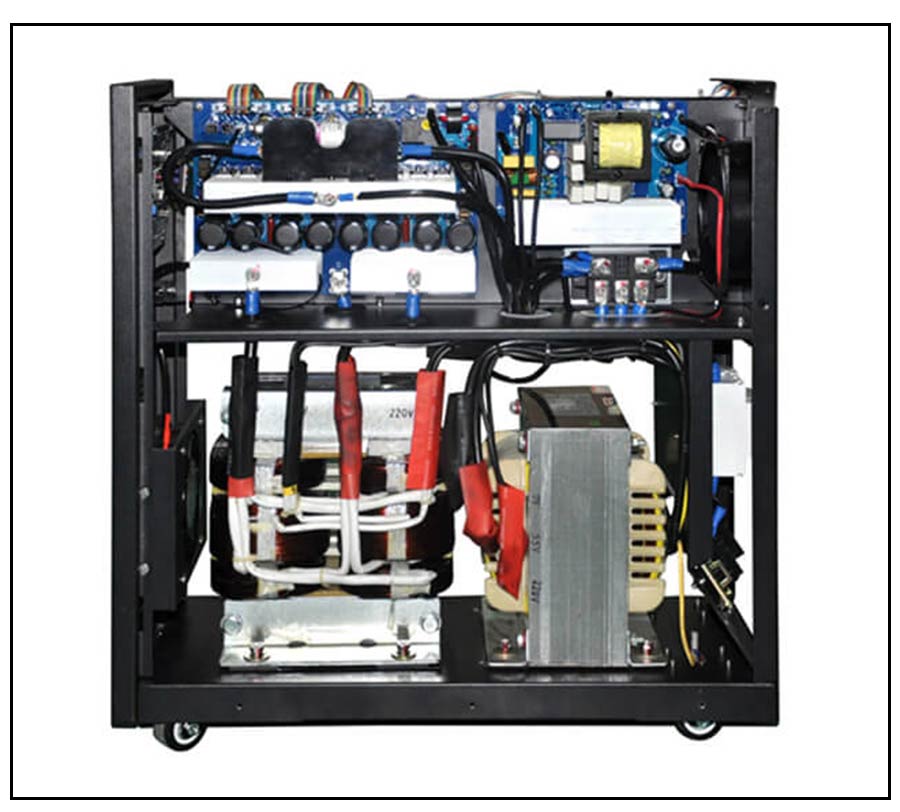

The internal structure for the MP1100 Series 1/1 online UPS 1kVA-30kVA.

Built in the Isolation transformer, intelligent IGBT boards, inverter boards, main boards and etc. Each products with Precision wiring and design layout. Mean to offer the best quality for the clients.

Q: Why choose us?
A: We are China Leading ups&solar system Manufacturer, 11 years experience in producing and marketing
ups & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 2 years warranty and if possible we provide on-site installation and repairing
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC authentication, and Chinese
energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.

If you have some problems about MP1100 Series 1/1 online UPS 1kVA-30kVA, or want to know more details about 3 phase ups,3 phase ups system,480 volt 3 phase ups,3 phase ups manufacturers,480v 3 phase ups,etc. Welcome to contact us!

Looking forward to your inquiry.
