Lithium Battery Pack
See more pictures
Description:

Lithium-ion battery pack for communication backup system and UPS system

- +
0
- +
0
- +
0

Contact Now Download As PDF
Product Detail
Feedback Now

● High energy density, small size, light weight, excellent safety performance and high reliability, long calendar life, with intelligent management system, green energy.
● Short-term backup application can be configured.
● Less 1 hours backup time can be configured.
● Super low temperature charge and discharge performance, can achieve ultra low temperature charging.
● Long cycle life (see technical data sheet).
● Battery Management System (BMS) with multiple protection functions.
● Communication between lithium battery pack and equipment (CAN communication interface).
● Battery system operation alarm, alarm local display and reporting function.
● Battery management system with self-diagnostics.
● Feasible storage records 30 days of historical data.
● Can be in parallel to expand capacity.
● LCD display is optional.

● UPS / Inverter power
● Center room
● High-voltage DC backup power supply
● Communication indoor and outdoor base station
● Other communication backup power areas

Lithium Battery Pack Technical Parameters

Battery Module Specification:
Lithium Battery Module Model MFP48100-H MFP24200-H
Cell Specification 100Ah 100Ah
Nominal Capacity (C) 100Ah 200Ah
Dimension(L*W*H)MM/Weight 444*430*131mm/45Kg 444*430*131mm/45Kg
Standard Charge Current 0.5C 0.5C
Maximum Continuous Charge Current 1C 1C
Standard Discharge Current 1C 1C
Absolute Charging Temperature 0~60℃ 0~60℃
Absolute Discharge Temperature -20℃~60℃ -20℃~60℃
Storage Temperature -40℃~60℃ -40℃~60℃
Storage Humidity RH 0%~90%, Non-condensing
Cycle Service Life ≥3000 cycles, According to the standard charge and discharge cycle (25℃ environment, 1C/1C), the capacity is attenuated to 80% of the nominal capacity.
High Voltage Control Unit
High Voltage Control Unit CFP192100-H CFP240100-H CFP384100-H
Nominal Voltage 192V 240V 384V
Charge Cut-off Voltage 219V 274V 438V
Discharge Cut-off Voltage 168V 210V 336V
Charging Current Limiting 50A 50A 50A
BMS (Lithium Battery Manage System) Function Protection: Total voltage overvoltage protection, Single cell voltage overvoltage protection, Total voltage undervoltage protection, Single cell voltage undervoltage protection, Charging overcurrent protection, Discharge overcurrent protection, Over temperature protection.
Monitoring: 1,Detection of single cell voltage; 2,Detection of battery cell temperature; 3,Detection of total current of battery pack; 4,Detection of total battery voltage; 5,Insulation monitoring; 6, SOC, SOH estimation.
Control: 1,Digital output expansion, digital input detection (provide 6 lines of dry contact control, 2 lines of OC output control, 4 lines of DI signal detection); 2,Equalization control (passive equalization, equalization current > 50mA).
Storage: Information storage (SOC, SOH, fault code, single cell collected data, temperature collected data, total voltage, total current and so on real-time data, and historical alarms and critical faults information).
Feedback: Diagnose and alarm for the battery faults such as overvoltage, undervoltage, overcurrent, overtemperature, SOC too low or too high, and consistency faults.
Application: Can be single cluster use, or multi-clusters of battery packs in parallel use, and can realize 8 clusters in parallel connected (multiple clusters are recommended to increase PCS).

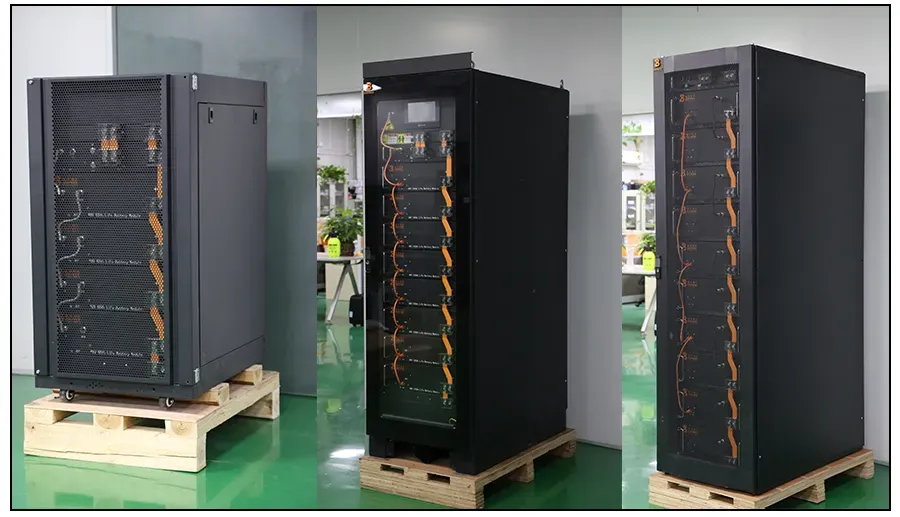

Lithium Battery Pack General Specification
Model BFP48100-HH BFP192100-HH BFP240100-HH BFP384100-HH
Configuration Module No MFP48100-H*4 MFP48100-H*5 MFP48100-H*8
Configuration High Voltage Control Unit No CFP192100-H CFP240100-H CFP384100-H
Weight(Kg) 45Kg 200Kg 250Kg 380Kg
Network Cabinet Size (mm) (optional) 444*430*131 600*600*1000 600*600*1200 600*600*1800
