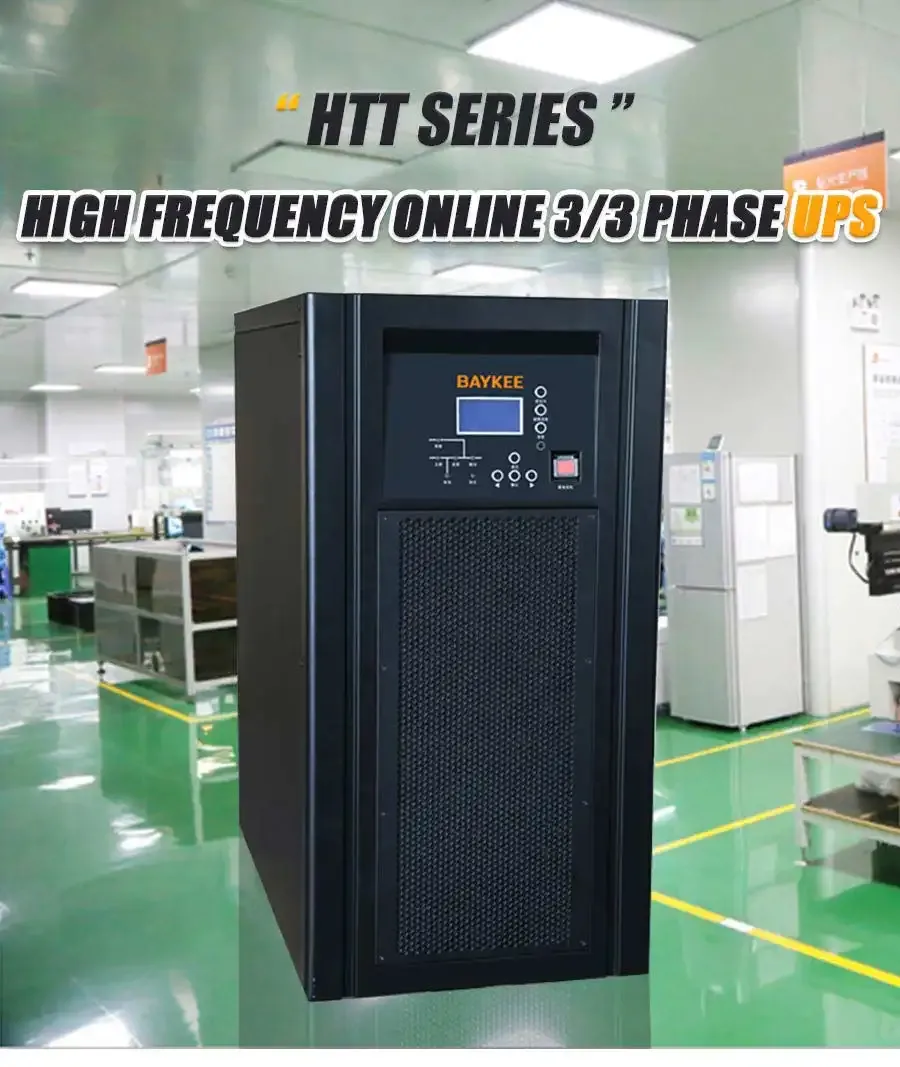

HTT Series High Frequency Online 3/3 phase UPS— Power Range from 10KVA to 80KVA

best ups for pc battery backup power supply

See more pictures

Description:

HTT Series High Frequency Online 3/3 phase UPS introduction

HTT Series High Frequency Online 3/3 phase UPS adopt double conversion true online architectural design, is the best architectural design which can solve all power supply problems. The power factor of HTT series high frequency online 3/3 phase ups range from 0.9 to 1. The whole system efficiency reachs to 98%.

Small and medium-sized data centers, Network management center, Computer rooms for enterprises, Control center for Manufacture, Transportation, Energy source etc. field, And for industrial precision production and test equipment（like SMT, AI equipment).

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

Send Email To Us Contact Now

Product Detail

Feedback Now

10kva UPS, 10 kva ups 3 phase, 10kva ups system

Technical Specifications for 10kVA UPS System, ups 10kva 3 phase

10kva ups with battery price,3 phase ups 10kva

1.DSP control, Double conversion true online three phase input three phase output UPS
2.Through filter, PFC, and convert AC into DC, and then DC is converted into AC output by inverter.
3.Adopt Similar to modular design, integrate the every phase power parts into the same PCB boards. But not whole module design.
4.Advanced adaptive feedforward offset control, low harmonic distortion
5.THDi<1%
6.Input Power Factor: [email protected]% load
7.Efficiency: 95%
8.Compact design, High space use
9.In front of the operation design, ease of maintenance and replacement
10.Can set input/output single phase/three phase
11.Compatible with various types of loads
12.Can 4pcs in parallel
13.With kinds of communication interface
14.More than 60% recyclable material
15.Display the remaining discharge time
16.Digital LCD display, beautiful and easy to operate
17.Compatible with many languages
18.This series power is200kVA

Model

HTT- 10KVA

HTT- 15KVA

HTT- 20KVA

HTT- 30KVA

HTT- 400KVA

HTT- 60KVA

HTT- 8OKVA

HTT- 100KVA

HTT- 120KVA

HTT- 150KVA

HTT- 200KVA

Capacity

10KVA/ 9KW

15KVA/ 13.5KW

20KVA/ 18KW

30KVA/ 27KW

40KVA/ 36KW

60KVA/ 54KW

80KVA/ 72KW

100KVA/ 90KW

120KVA/ 108KW

150KVA/ 135KW

200KVA/ 180KW

Mains input (AC )

Phase

3 phase +N+PE

Voltage range

291~ 492 V(line-line) fu1ll load; 200V~ 291V linearly decrease

Frequency range

35Hz ~ 70Hz

THDi

<3% (full linear load)

Power factor

0. 995~1

Bypass range

-10%~ 10% (can customized -10%~-30%, +10%~ +20%)

Battery

Connection type

positive series and negative series battery

Rated voltage

+/- 240VDC (positive and negative each 20pcs*12V series), can customized

Battery number

40pcs/set (can customize 30~ 50pcs/set even optional)

Charging current

20% system power (battery capacity)

Output (inverter)

Output voltage

380VAC 3 phase+N+PE

Voltage regulation

<+/-1%

Phase lock range

50Hz/60Hz+/-5Hz(self frequency 50Hz/60Hz+/-0.01Hz)

Output frequency

50Hz/60Hz+/-0. 01 (turn into mains frequency if phase 1ocked)

Power factor

Crest factor

3:1

THDu

THD<2.0% (linear load), THD<3% (non-linear load)

Three phase voltage unbalance degree

balance load: 0.5% 100% unbalance load : 1%

Dynamic voltage transient range

<3%

Transient Recorery

0 ms

Time

Three phase voltage deviation

mains:0.4; battery :0.3

Transfer time

mains to battery: 0 ms; inverter to bypass: 0 ms

Overload capacity

125% for 10min: 150% for 1min; >150% for 200ms (linear load)

System efficiency

>96%

>95%

Environment indicator

Noise

<65dB 0100%load, cooling fan adopt intelligent speed control

Display

touch screen LCD+LED

Interface

standard: RS232, RS485, dry contacts, SNMP card optional

Operation termperature

temperature: -10c ~ +40C; humidity 0%~98%; storage temperature -25C ~+75C Altitude (m): <1000,1000m- 2000m above every 100m reduce 1%

IP class

IP30( Removable dust filter)

Physical specifications

Cabinet size (W*D*H)

420*750*880

600*800*1250

600*1100*2000

Cabinet weight KG

210

230

235

250

415

460

Modules No. (Max)

NOTES: subject to change wi thout further notice!

The internal structure of the HTT series online ups.

The production line for the HTT series ups,

Q: Why choose us?
A: We are China Leading ups&solar system Manufacturer, 11 years experience in producing and marketing
ups & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 2 years warranty and if possible we provide on-site installation and repairing
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC authentication, and Chinese
energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.

If you have some problems about HTT Series High Frequency Online 3/3 phase UPS, or want to know more details about 3 phase ups,3 phase ups system,480 volt 3 phase ups,3 phase ups manufacturers,480v 3 phase ups,etc. Welcome to contact us!

Looking forward to your inquiry.
