CHP3000 series double conversion online ups 3/3 phase

See more pictures

Description:

CHP3000 series 3 phase online ups is 3 phase in, 3 phase out low frequency online ups, we can make 220/380/400/415vac input or 110v/120/227v/480v input voltage according to different clients’ need. The largest capacity can reach to 1000kva(working in parallel)

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

- +

ADD TO INQUIRY 0

Send Email To Us Contact Now Download As PDF

Product Detail

Feedback Now

Top list of CHP3000 series double conversion online ups 3/3 phase, 3 Phase UPS

UPS manufacturing, 220/380/400/415vac

CHP3000 series rates, Online UPS system manufacturer & supplier

The advantages of CHP3000 series 3 phase online ups
1.The 6th generation IGBT inverter technology. Built in high capacity transformer
2.Ultra-distinct interface information processing technology.
3.Input-output over-low voltage protection, input surge protection, phase protection, battery overcharge-overdischarge protection, output overload shortcut protection, overheat protection and alerting.
4.3 phases separately adjustment,balance stabilizing
5.Intelligent battery management, 3 stage charging mode.
6.High precision SMD technology

Model

CHP
3010K

CHP
3020K

CHP
3030K

CHP
3040K

CHP
3050K

CHP
3060K

CHP
3080K

CHP
3100K

CHP
3120K

CHP
3160K

CHP
3200K

CHP
3250K

CHP
3300K

CHP
3400K

CHP
3500K

Nominal capacity (KVA)

100

120

160

200

250

300

400

500

Power (KW)

128

160

200

240

320

400

Work Mode

Low Frequency Double Conversion True online

Phase

Three Phase 3L+N+G

Input Power Factor

≥0.9 ( 6pulse Rectifier+Filter), ≥0.96 ( 12pulse Rectifier+Filter)

Rectifer(Input)

Nominal Voltage

480vac/ 380vac/ 400vac/ 415vac or Optional 200vac/ 208vac/ 220vac

Range

±25%

Frequency

50Hz±10% or 60Hz±10%

Hamonic Current

6pulse rectfer<30%, 12pulse rectifert＋filter<5%

Output Ripple Wave

<2%

Soft Start

0~100% 5Sec

Charge

Charge Mode

Constant current, then constant voltage, charge with temperature compensation, automatic switch Between Equalized charge and Float charge, programmable timing battery charge-discharge automatic maintenance

Float charging voltage

432VDC

Equalized charging voltage

464VDC

Temperature compensation Voltage

-3mV/ ℃/pcs

Charge Current

0.1C ( Automatic adjust according to battery capacity) Example: 100Ah battery, The charge current is setted 10A, or according the Charge time customer need

Battery

Type

maintenance free lead-acid battery, Optional Lithium battery

Capacity

7~ 999AH settable (capacity vary with power)

Number

384VDC(12V 32pcs or 2V 192pcs), Optional 360VDC (12V 30pcs, or 2V180pcs)

Inverter

Phase

Three Phase +N

Output Power Factor

0.8

Nominal Voltage

480vac/ 380vac/ 400vac/ 415vac or Optional 200vac/ 208vac/ 220vac

Output voltage stability

±1%(steady load), ±3%(fuctuation of load)

Frequency stability

50Hz, 60Hz<+0.5% (Asynchronous )

Crest Factor

＞3:1

Output Waveform distortion degree

Pure Sine Wave, linear load< 3%, non-linear load< < 5%

Dynamic Feature

Transient voltage < ±5% (jump form 0% to 100% ), instant recovery time < 10ms

Unbalance load voltage

＜ ±5%

Overload Protection

115% normal work, 125% 10 min, 150%1min, 200%1s

Eficiency

92% ( Full Load )

93% ( Full Load )

95% ( Full Load )

Bypass

Phase

3 Phase +N

Input Nominal Voltage

480vac/ 380vac/ 400vac/ 415vac or Optional 200vac/ 208vac/ 220vac

Output Nominal Voltage

Transfer Time

0ms (Static switch 0ms switch)

Protection Function

Input Protection

Voltage, Frequency ultra limit, Phase wrong, Phase lost

Output Protection

Over current, Short circuit, Over Voltage, under voltage

Battery Protection

Overcharge, Over discharge protection

Temperature Protection

Environment over-temperature protection, Inverter over-temperature protection

Hardware Fault Protection

Auxiliary power supply abnormal, breaker trip, fuse break, power device over current or overvoltage

Systems Parameters

ECO Mode

Can set the ECO Mode, High effhciency up to 98%

Voice Alam

Any failure will be alerted

Work Environment

Ambient temperature: 0~ 40℃, Relative humidity: 30%~90%, altitude: < 2000M (power reduce 1% every 100M raised, 4000M utmost)

Cooling Method

Forced Ventilation

Communication Port

RS232, RS485, Dry contact interface, Optional SNMP card for remote control

Redundancy function

Series Connection Hot Backup or Parallel, Parallel Current deviation≤5%

Anti surge capacity

10/700μS, 5KA，8/20μS, 20KA

Protection Level

IP21

Safety performance

I/O on ground resistance (3000VAC), stray current less than 3.5mA, insulation resistance exceeding 2MΩ(500VDC)

Noise(dB)

48~55

55~60

60~65

65~70

Mechanical Size (WxDxH)mm

600*620*1250

700*620*1530

980*800*1800

1380*950*1800

1600*1200*1800

2000*1200*2000

Packing Size (WxDxH)mm

670*690*1460

800*690*1760

1050*870*2030

1450*1020*2030

1670*1270*2030

2000*1200*2000

Net Weight(Kg)

205

265

311

407

485

506

770

913

937

1350

1730

1800

1880

2030

3860

Gross Weight(kg)

236

296

342

447

525

520

812

955

980

1400

1780

1850

1930

2080

3910

Product details of CHP3000 series 3 phase online ups.

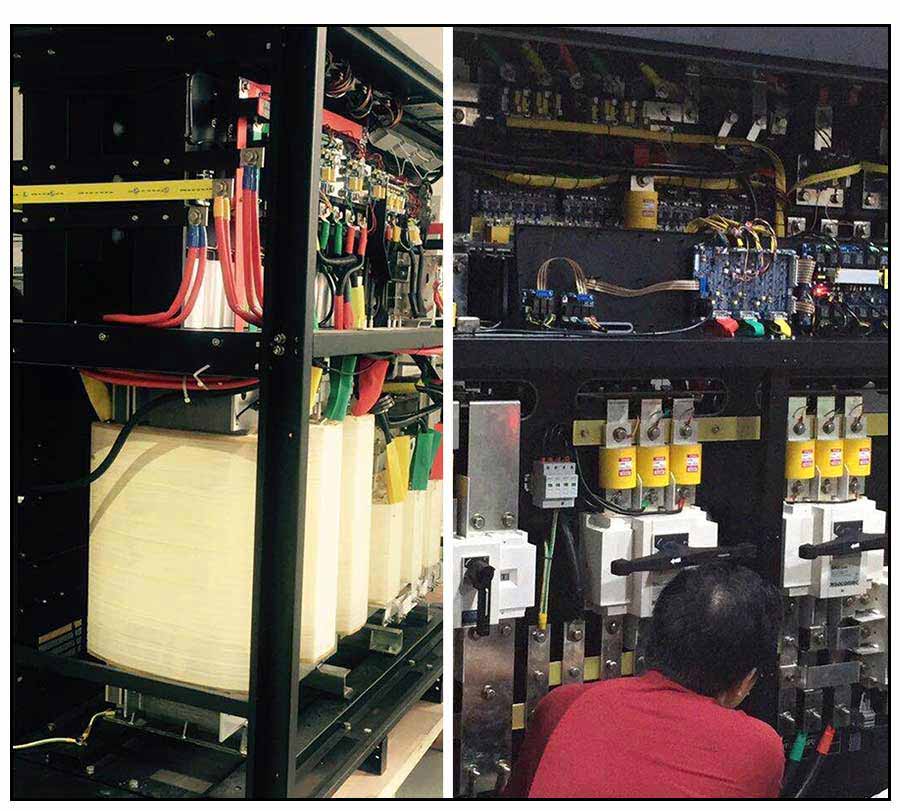

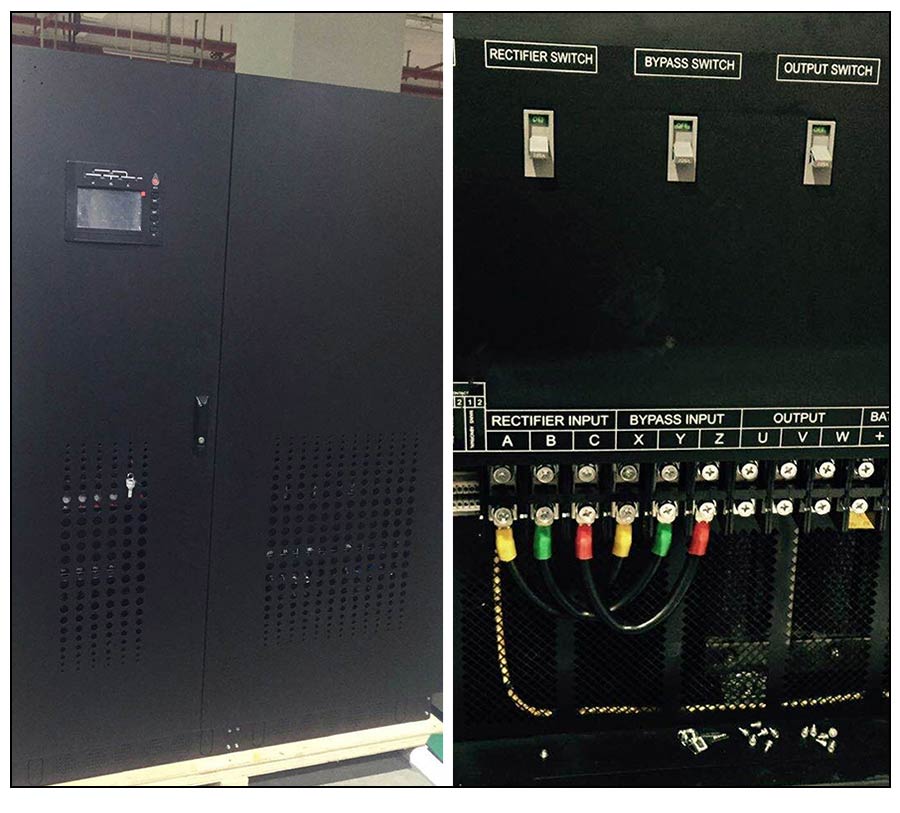

Internal structure
Built in high capacity transformer
UPS inverter/filter/main boards
Each components is high quality, use DELIXI breaker and INFINI switch, also can use schnider switch based on different requirement
